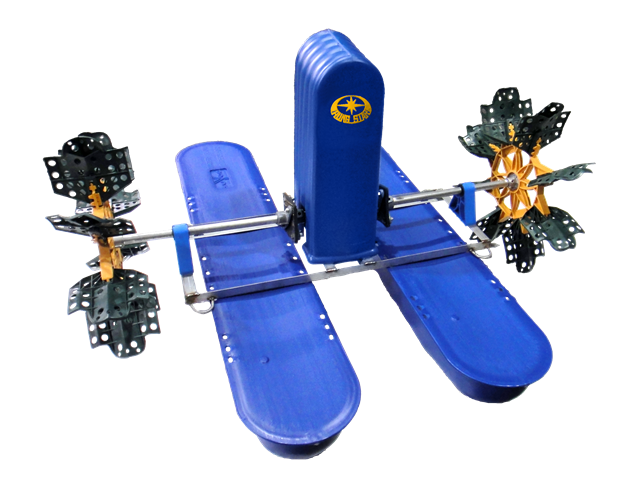

Paddle Wheel Aerator JH-H12

Paddle Wheel Aerator JH-H12
Tech Specs of Paddle-wheel Aerator JH-H12
1. Motor 1HP (0.75 kW)
Voltage: 220V/380V, 1-3 phase
Speed: 1450 R.P.M
Weight: 23 kg
2. Aerator bevel reducer
Transmission ratio 12:1 / 15:1
Cast-iron, Spiral gear
Weight: 21 kg
3. Aerator Impeller
Nylon material
Toughness with corrosion
Trident (Adjustable), 8 blade
Size: Ø27*67*20 cm
Weight: 3.2 kg/pc
4. Floater
Resist impact, acid-alkalinity, UV
All new HDPE material
One piece blow mold
Size: 165*32*23 cm
Weight: 6.4 kg/pc
5. Solid Shaft
Size: Ø27*545 mm
#304 stainless steel
Weight: 2.1 kg/pc
6. Frame
Size: 1140*374*35 mm
#304 stainless steel
Weight: 4.6 kg
7. Plastic bearing
Size: 4*13*14 cm
All new PVC material
Weight: 0.25 kg/pc
8. Movable Joint
Size: Ø27*Ø28
CI Metal + Square rubber
Weight: 1.3 kg/pc
9. PA Cover
Size: 24*27*66 cm
All new HDPE material
Weight: 2 kg
Certificate of origin
Certificate of quality
Dimensions assembled
165*166*90 cm
20ft container: 80 units
40ft container: 160 units

Paddle Wheel Aerator JH-H24

Paddle Wheel Aerator JH-H24
Tech Specs of Paddle-wheel Aerator JH-H24
1. Motor 2HP (1.5 kW)
Voltage: 220V/380V, 1-3 phase
Speed: 1450 R.P.M
Weight: 23 kg
2. Aerator bevel reducer
Transmission ratio 12:1 / 15:1
Cast-iron, Spiral gear
Weight: 21 kg
3. Aerator Impeller
Nylon material
Toughness with corrosion
Trident (Adjustable), 8 blade
Size: Ø27*67*20 cm
Weight: 3.2 kg/pc
4. Floater
Resist impact, acid-alkalinity, UV
All new HDPE material
One piece blow mold
Size: 165*32*23 cm
Weight: 6.4 kg/pc
5. Solid Shaft
Size: Ø27*845 mm
#304 stainless steel
Weight: 2.1 kg/pc
6. Frame
Size: 1675*725*35 mm
#304 stainless steel
Weight: 4.6 kg
7. Plastic bearing
Size: 4*13*14 cm
All new PVC material
Weight: 0.25 kg/pc
8. Movable Joint
Size: Ø27*Ø28
CI Metal + Square rubber
Weight: 1.3 kg/pc
9. PA Cover
Size: 24*27*66 cm
All new HDPE material
Weight: 2 kg
Certificate of origin
Certificate of quality
Dimensions assembled
165*220*90 cm
20ft container: 50 units
40ft container: 100 units

Notes

Manufacturer reserves the right to change the specification contained herein without notice. Please contact us for advice before ordering
